Create Dynamic Gas Mixtures – Low Flows
Give to your Laboratory total freedom on changing parameters with the best precision in automation.

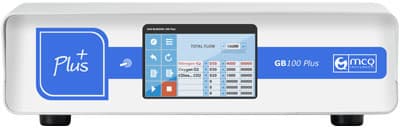

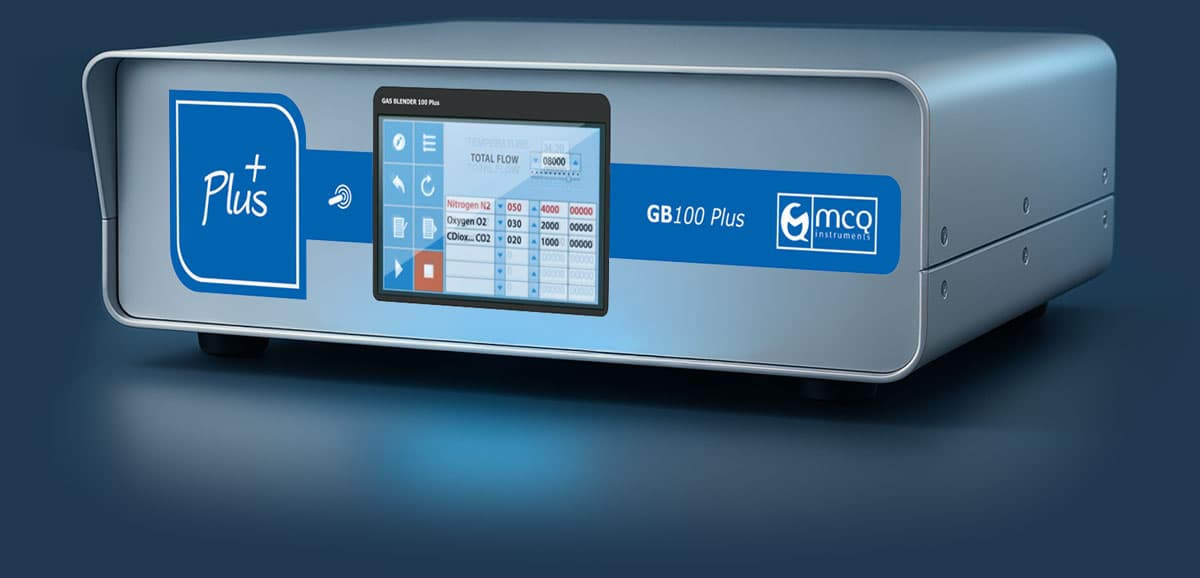

Gas Mixer
100 PLUS
UP TO 6 CHANNELS
GB100 PLUS is the best, cheapest and fastest solutions to manage, control,
measure and create Low-Flow and Micro Gas Mixtures or Dilutions.
We produce advanced, certified, interconnected, and trusted technologies dedicated to Laboratories.
HIGH FLEXIBILITY – From static to dynamic GAS Mixtures
Low Flow
GAS MIXER.
Up to 6 Channels
Create your dynamic mixture of up to 6 sources of pure gases with a single device.
Touch Display
Touch Display allows you to easily control all the parameters via the instruments.
Easy Integration
ProfiBus, ModBus, Matlab Simulink compatible and USB ready to use. Python Library supplied.
Gas Mixers vs. Mass Flow Controllers: LEARN THE DIFFERENCES
Our Gas Mixers
e.g. Considering a flow range of 0-500 mL/min, the instrument starts to work properly from 5 mL/min.
Our instruments have such an incredibly stable control even on micro-values, that you can use them to create high dilution up to a scale of 1:100.
Our instruments calibration consists in a high-quality control process, setting a Calibration Curve on 80 calibration-points, each one measured and repeated for 6 times. We made everything to guarantee you precision and accuracy!
Traditional MFC
e.g. Considering a flow range of 0-500 mL/min, the instrument starts to work properly from 50 mL/min
A great instability with low-flow does not allow to manage and create high dilution with precision.
Regular Mass Flow Controllers are calibrated based on a Calibration Curve of only 5 calibration-points.
• All the MCQ Instruments are a whole lab in single boxes ready-to-use. The traditional MFCs need instead of a tube system, external power supply and a large amount of space and budget to consider after.
• All the MCQ Instruments are shipped with a bundled Software for full automation. The traditional MFCs need instead of a manual approach.
• All the MCQ Instruments have been created to control every single parameter up to the whole management of every aspect of a gas mixture. The traditional MFCs were created instead to control only a single source of gas.
OUR PRODUCTS HAVE BEEN USED FOR:
• Accuracy: (for each channel)
N2, 20 ºC, 101.325 kPa (1 atm):
5-100% FS: 1% of SP
< 5% FS: 0,2% of FS
• Repeatability:
0,10% of reading
• Response time: (for each channel)
100 ms
• Power Supply:
In Bundle
• Operation Pressure:
Max 3 bar
• Working Temperature:
0 – 50 °C
• Mass Flow Rates: (for each channel)
0 – 500 mL/min
• Total Mixture Flow Rate:
Up to 3 L/min
• Gases:
N2, O2, CO2, CH4, Air, He, H2. (additional gases supported on request)
• Compatibility:
Profibus, Modbus, Matlab Simulink, Python
• Communication:
USB PC Interface RS485 with open proprietary protocol.
• Fittings:
Swagelok NPT or Push-in fittings for 6-4mm tubes. Other on request

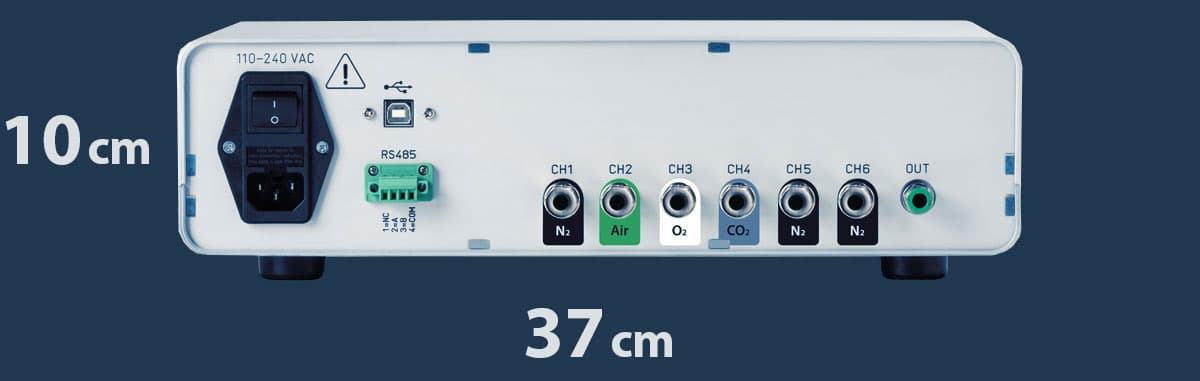

• Inlet Gas Channel:
Up to 6 Inputs
• Outlet Gas Channel:
1 Output of mixed gases
• User Interface:
Gas mixing software. Touch Display.
• Certifications:
CE, TUV, cTUVUS, Made in Italy
COMPARE THE GAS BLENDERS

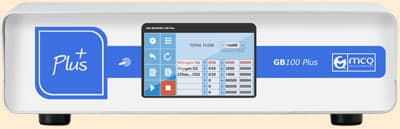

GB 100 PLUS
GB 100
FAQs:
Our Instruments are currently used by the best Universities & Companies around the world. Among the many we can mention: Roche, Yale, Novartis, Stanford, Mayo Clinic, Berkeley, Oxford and much more.
This website, as well as our social media channels, are often updated with new Business Cases and Scientific Papers ready to be consulted.
Sure! In any moment you can use the K-Factor to change the gas via the Software or Touch Display.
The K-Factor is used by the software to mathematically adjust the channel calibration curve in case you need to work with gases the channels have not been calibrated for.
How to do that?
Easy: Go on “Setting” and after click on “Channel Gas Setting”.
More info at Chapter 6 on the Manual.
Sure! Custom cylinder function allows you to create your new customised K-Factor. Name it, set the data and it’s done.
How to do that?
Easy: Go on “Setting” and after click on “Custom Cylinder”.
More info at Chapter 6 on the Manual.
Sure! Custom cylinder function allows you to create a no-pure gas cylinder and to calculate the correct K-Factor. After having chosen the name of your own cylinder you can set the main components and the percentages in %, ppm or ppb of the minor gases, and visualize the calculated K-Factor.
How to do that?
Easy: Go on “Setting” and after click on “Custom Cylinder”.
More info at Chapter 6 on the Manual.
It depends on the concentration. Example, we can manage up to 1000 ppm di H2S.
Contact us at: info@mcqinst.com for more information
If you have a full range of 500 ml/min, with a cut-off of 10% you cannot control flow-rates below than 50 ml/min.
Gas Blender 100 Series has NO CUT-OFF so you can control the flow range from 0,5 ml/min to 500 ml/min.
Yes, all our instruments are CE, TUV and cTUVUS/ul certified.
Yes using MODBUS protocol you can control the instrument with your own software. We supply a specific command list.
Yes using MODBUS protocol you can control the instrument with your own software. We also supply a specific ddl for Python.
Yes using MODBUS protocol you can control the instrument with your own software. We supply a specific command list.
Touch
DISPLAY.
Easy to
INTEGRATE.
Gas Blender 100 Plus is not only USB connected, but
Bluetooth ready, with the possibility of future Wi-Fi
implementation. This functionality allows to remote
control the instrument.
Its integrability with Profibus, Modbus & Simulink gives
the possibility of an extremely easy integration into
other systems. Moreover, we supply a Python Library
to control the instrument via RS485.

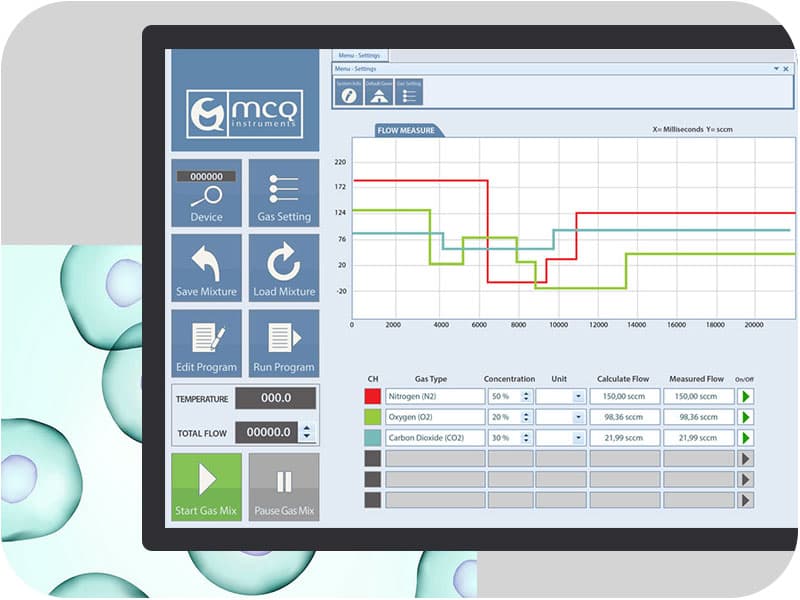

Intuitive
SOFTWARE.
For Advanced functionality or to control the instrument via PC, we also provide MCQ Mixture Creator. A complete gas mixing software, that allows direct access and control to all the parameters of our products. Thanks to a user-friendly interface, you can manage the gas mixing process to modify and control both the final blending and your dynamic dilution.
