GB Nano H

Gas Mixer for Incubators

Pure Gases Custom Mixtures.

A Gas Mixer designed specifically for incubators and cell growth processes. It offers precise control and blending of N2, O2 and CO2, creating optimal growth conditions.

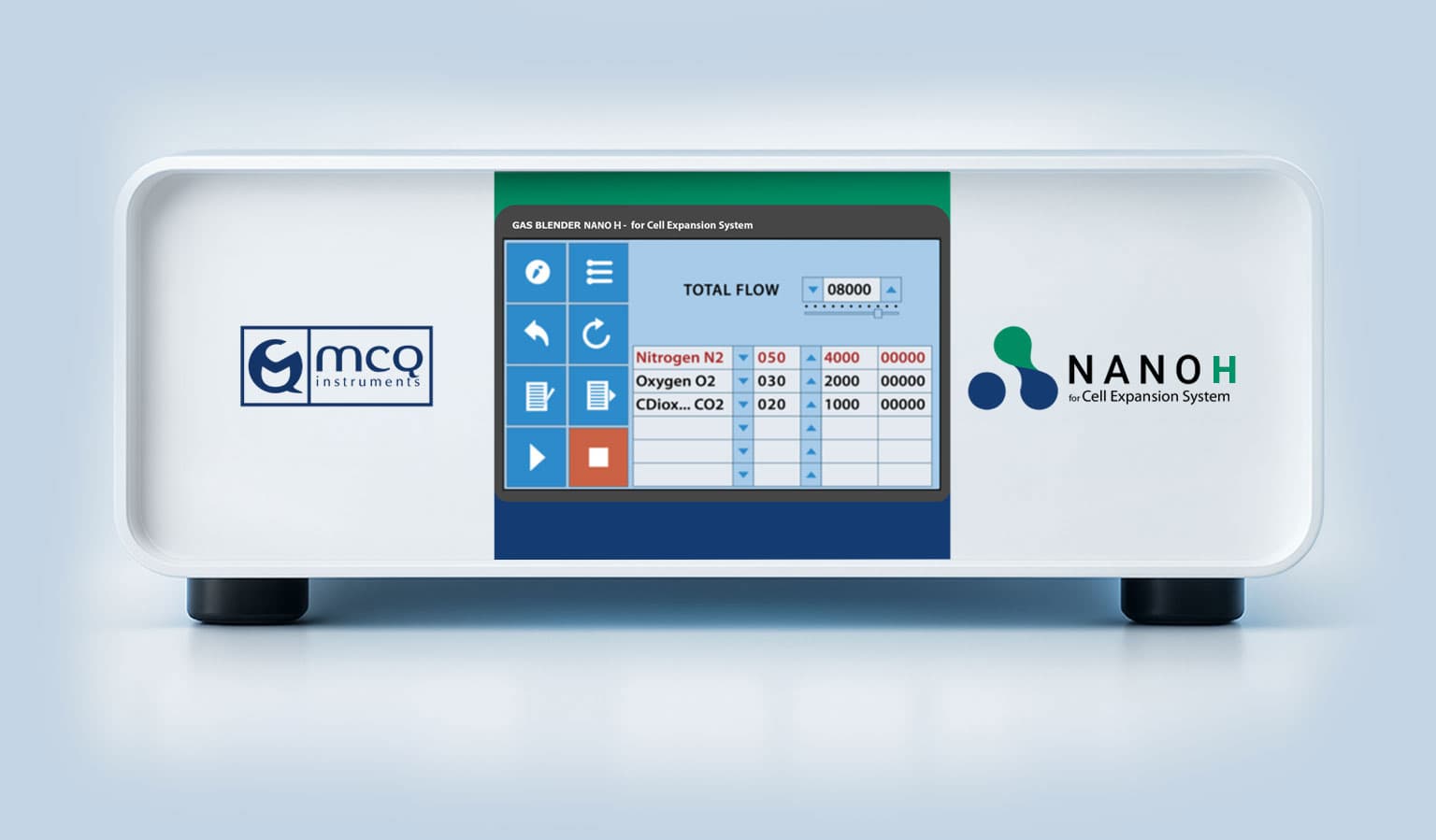

Gas Mixer for Incubator - MCQ Instruments

0,5 - 500 mL/min each input channel
3 Pure Gas Inputs
From 2 up to 4 Cell Expansion Systems or Incubators

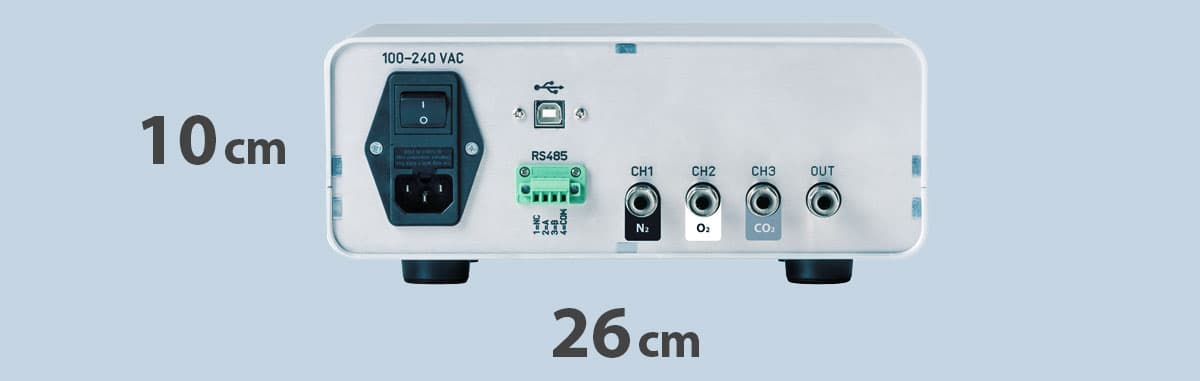

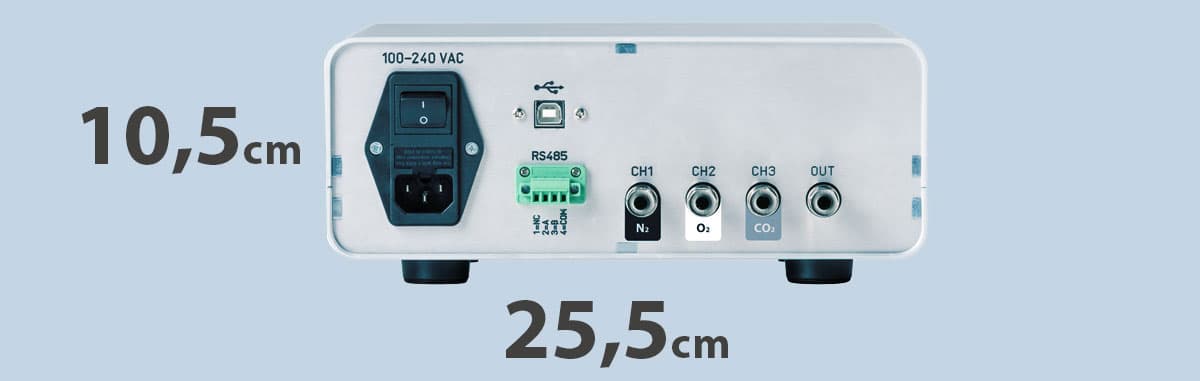

Gas Mixer for Incubator Back - MCQ Instruments

Its versatility allows for the creation of various conditions, including Hypoxia and Anoxia, by simply using Pure Gas Cylinders or diluting Air from the wall-mounted pipe. As an essential component in cell culture laboratories, this Gas Blender support research and development by facilitating advancements in cell-based studies.

Learn more about our collaboration with TERUMO BCT.

TERUMO BCT

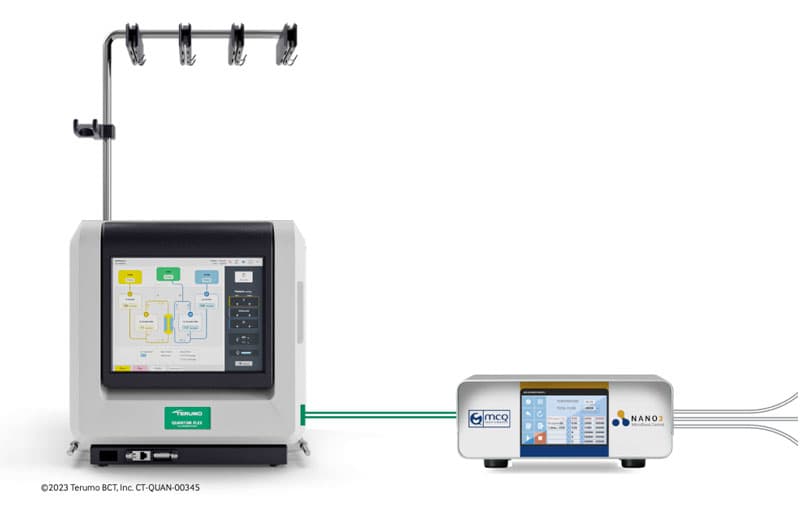

Collaboration with Terumo BCT - Cell Expansion System

Custom Firmware and Software.

Our custom software and firmware give you significantly more control over your cell culturing compared to the other regular Gas Mixers.

Multi-System Cell Expansion.

The GB Nano H supports from 2 up to 4 cell expansion systems for complex setups.

IQ OQ GMP Ready.

We ensure adherence to rigorous manufacturing processes through a comprehensive validation system: Our “IQ OQ GMP Ready” slogan reflects our unwavering commitment to quality and compliance.

Smart Alarms.

Our advanced Gas Mixer is equipped with intelligent alarms that monitor the gas flow. These alarms detect a range of potential issues, including:

No flow - Under flow - Over flow - Instability

Operate using percentages of gas, not just in flow rates

Complete and Ready-to-use System

Superior alternative to Pre-Mixed gas cylinders

Gas Mixer Software Desktop

MCQ Instruments provides bundled software with all of its devices for full automation. Our instruments are designed to control every parameter, from the individual components of a gas mixture to the management of the entire process.

Datasheet

Gas Mixer for Cell Expansion Systems and Incubators - Custom Gas Mixtures - miniature

GB Nano H

Our all-in-one up to 3-channels solution for gas mixing

Mass Flow Rate for each channel

GB NANO H:
0,5 - 500 mL/min on N2 (Standard)
from 2 up to 4 cell expansion systems

N2, O2, CO2, Air, H2

Additional gases supported on request

Accuracy

N2, 20 ºC, 101.325 kPa (1 atm):
5-100% FS: 1% of SP
< 5% FS: 0,5% of FS
For each channel

Repeatability

0,10% of reading

Response time

100 ms for each channel

Alarms

4. No Flow, Under Flow, Over Flow, Instability

More

Power Supply

In Bundle

Operation Pressure

Max 3 bar

Working Temperature

15 - 25 °C

Compatibility

Profibus, Modbus, Matlab Simulink, Python Library

Communication

USB PC Interface RS485 with open proprietary protocol.

Fittings

PTC (Push to Connect):
EU Market: Inlet 6 mm - Outlet 1/4”
US and APAC Market: Inlet and Outlet 1/4”

Inlet Gas Channel

3 Inputs

Outlet Gas Channel

1 Output of mixed gases

User Interface

Gas mixing software. Touch Display

Certifications

CE, TUV, cTUVUS, Made in Italy

The Gas Mixer for Laboratory

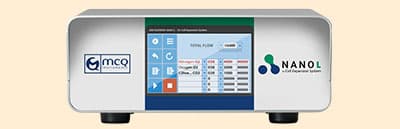

Gas Mixer for Cell Expansion System GB Nano L - Custom Gas Mixtures - miniature

A complete laboratory experience in a single, ready-to-use box.

ProfiBus, Modbus, Matlab Simulink compatible. USB and RS485 Bus. Python Lbrary supplied

Create Custom Gas Mixtures starting from Pure Gas

No specific skills are required. Easy to use and fully automated

Informative Data and Downloads

Brochure GB Nano H

Download the PDF

Brochure Software

Download the PDF

Brochure Feedback Control Technology

Download the PDF

Gas Blender vs Mass Flow Controller

Watch the video

Overview

Watch the video

The Fastest Devices in the Market

Watch the video

Software

Watch the video

Frequently Asked Questions

Do you have any question about our products?
We are here to help.

FAQs
Frequently Asked Questions - MCQ Instruments
Gas Mixer for Incubators - Cell Growth
Logo Reference Nih
Normothermic Ex Vivo Liver Perfusion

Easy blending of gases, runs without user input (Programmable sequences).

Logo Reference Oxford
Oxygen regulated microscope perfusion system

The immediate availability of any gas mixture required (5% CO2, 0-18% O2) is a potentially substantial time saving feature, as ordering custom gas mixtures can take 1 month.

Logo Reference Calico Google
Hypoxia Studies

Running experiments is easy and straightforward.
